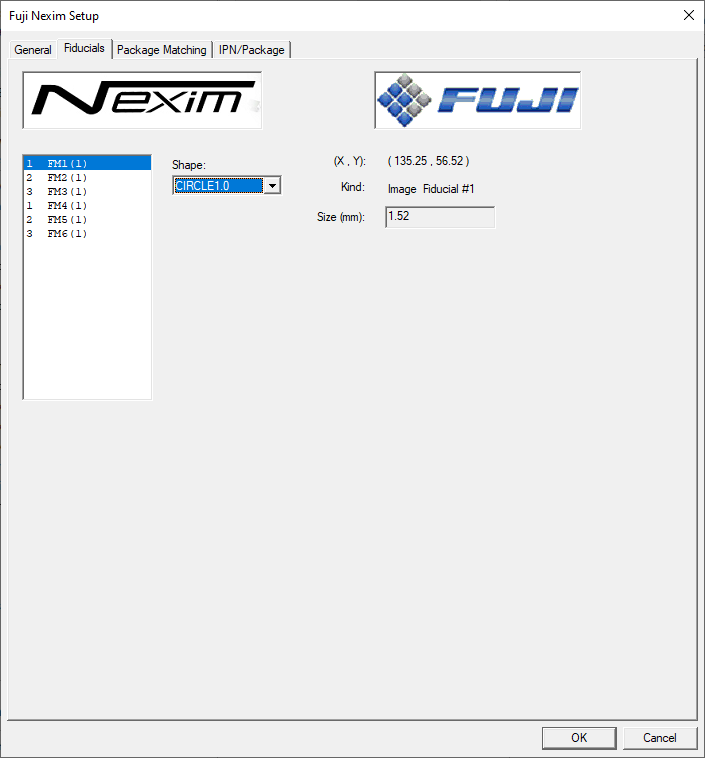

The Fuji Nexim Setup dialog's Fiducials tab options allow you to make adjustments to fiducials for the current board and operation.
|
Option |
Description |
|---|---|
|
Fiducial list |
Displays a list of all board fiducials. |
|
Shape |
Allows you to modify the shape of a fiducial selected in the fiducial list. |
|
Fiducial details |
This area of the dialog displays the X and Y coordinates of the selected fiducial, its kind, and its size (in millimeters). |
