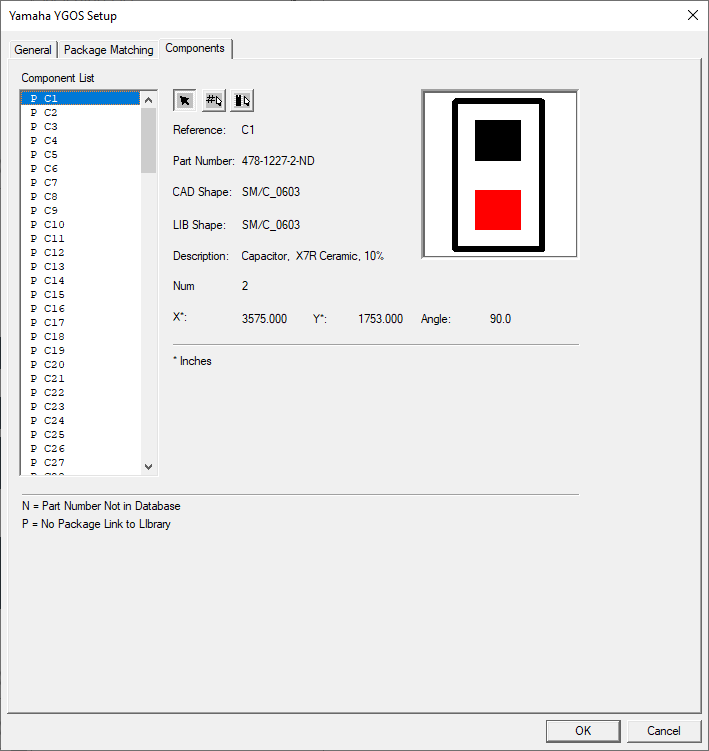

The Components tab of the Setup dialog displays information about all components on the board.
|
Option |
Description |
|---|---|
|
Component List |
Displays a list of all components on the board. |
|
Component details |
Displays the reference designator of the selected component, its part number, CAD shape, library shape, description, number, X and Y coordinates of the component, and the rotation angle. |
|
Error codes |
N = The selected part number doesn't exist in the Yamaha database. P = A package link to the part number doesn't exist in the database. |
